How to E2E test the ClickUp Alakai Ready flow locally (V2)

This guide covers the V2 ClickUp integration:

  • Trigger is taskStatusUpdated → status Alakai Ready (no longer taskCreated).
  • Routing key is the webhook_id in the payload → a clickup.lists[].webhookId entry.
  • The webhook payload carries no task body, so the handler always does a follow-up GET /api/v2/task/{id}?custom_fields=true. A real PR therefore requires a real task_id plus a bot token that can read it — you can't fake the whole thing offline.
  • Optional platform routing sends one shared list to multiple repos via a Platform dropdown custom field.

The older guide test-clickup-task-prompt-pr-locally.md covered the removed V1 taskCreated flow and is now a deprecation stub pointing here.

There are five paths, fastest first. Pick based on what you're validating before opening the PR:

PathWhat it provesNeeds ClickUp?Needs public URL?Time
0 — Automated testsRouting logic, gates, secret resolutionNoNo1 min
A — Gate smoke testEvent/status/webhook gates discard correctlyNoNo5 min
B — Hybrid local E2EReal task fetch → real PR, manual webhook deliveryYes (read)No15 min
C — Full E2E (prompt-PR)Registration (/init or CLI) + real status transition → docs(prompts): PRYes (read+admin)Yes (ngrok)25 min
D — Full E2E (direct implementation)Alakai stage = Implementation → SQS → worker opens a real PR → PR-URL comment-backYes (read+admin)Yes (ngrok)35 min

V2 added the Alakai stage fork. A task at Alakai Ready with Alakai stage = Implementation skips prompt generation and the docs(prompts): PR, and launches the implementation agent directly from the task spec. Path D is the full E2E for that path; Paths A–C cover the Prompting (default) behavior, which is unchanged.


Path 0 — Run the automated tests first

This is the cheapest gate and covers the routing state machine and signature/secret logic.

cd core
yarn typecheck
yarn jest test/config/clickupRouting.test.ts test/interfaces/http/clickupWebhookRoute.test.ts

You should see the routing unit tests and the POST /clickup/webhook integration tests pass. Run the whole suite (yarn jest) before opening the PR.


Prerequisites for the manual paths

  • Alakai running locallycd core && yarn dev (listens on :3000).
  • Redis running — required for task tracking: docker run -p 6379:6379 redis.
  • Local config file mode — in .env:
    REPO_WORKFLOW_CONFIG_SOURCE=file
    (Optionally REPO_WORKFLOW_CONFIG_FILE_PATH=/abs/path/config.json; defaults to core/config.json.)
  • GitHub access (Paths B/C only) — GITHUB_APP_ID + GITHUB_APP_PRIVATE_KEY, or a GITHUB_TOKEN with push access to the target repo.

Local signing key

On each request the handler picks the HMAC key as CLICKUP_WEBHOOK_SECRETS[webhook_id]. There is no shared fallback secret — each webhook_id must have its own entry in the map. For local testing, add an entry keyed by the webhook_id you intend to send:

CLICKUP_WEBHOOK_SECRETS={"EXAMPLE_WH_ID":"EXAMPLE_local_signing_value"}

You then sign each make call-clickup-task-status-updated invocation with the matching per-webhook secret via the required secret= argument (e.g. secret=EXAMPLE_local_signing_value), so the signature matches the key stored under that webhook_id.

The route only mounts when a non-empty CLICKUP_WEBHOOK_SECRETS map is present. If /clickup/webhook 404s, you forgot to set it.


Path A — Gate smoke test (fully local)

Proves the new gates (wrong_event_type, status_not_trigger, webhook_secret_missing, webhook_not_mapped) without ClickUp or GitHub. No PR is produced — by design, a non-Alakai Ready event never reaches the task fetch, and a fully-fake Alakai Ready event fails the fetch (task_fetch_failed).

1. Minimal config.json

{
"projects": {
"demo": {
"clickup": {
"space": { "id": "90120056789" },
"lists": [{ "id": "901200100", "name": "Backlog", "webhookId": "wh-local" }]
},
"applications": {
"demo-app": {
"repo": "your-org/your-repo",
"baseBranch": "main",
"workflows": { "clickupTaskPromptPr": true },
"clickup": { "taskStatusTrigger": { "listId": "901200100" } }
}
}
}
}
}

2. Start the server

cd core && yarn dev

3. Fire the gate cases (second terminal in core/)

# Assumes CLICKUP_WEBHOOK_SECRETS contains {"wh-local":"EXAMPLE_local_signing_value"}.
# (a) Non-trigger status → discarded before any fetch (status_not_trigger)
make call-clickup-task-status-updated task_id='t1' webhook_id='wh-local' status='In Progress' secret=EXAMPLE_local_signing_value

# (b) Unknown webhook_id → 401 webhook_secret_missing (the webhook_id has no entry in the map)
make call-clickup-task-status-updated task_id='t2' webhook_id='wh-unknown' status='Alakai Ready' secret=EXAMPLE_local_signing_value

# (c) Trigger status, mapped webhook, but no real task → task_fetch_failed (needs bot token to even try)
make call-clickup-task-status-updated task_id='t3' webhook_id='wh-local' status='Alakai Ready' secret=EXAMPLE_local_signing_value

4. Verify in the server logs

CaseExpected log eventHTTP
(a)status_not_trigger (debug)200
(b)webhook_secret_missing (webhook_id absent from the map)401
(c)task_fetch_failed (no bot token, or task not found)200

No GitHub calls and no emitInProgress tracking event should fire in any of these.


Produces a real prompt PR from a real ClickUp task, but delivers the webhook yourself with the Makefile target — so no ngrok and no webhook registration are needed. This is the fastest way to validate the full task-fetch → routing → PR → comment-back round trip.

1. Get a ClickUp bot token and a real task ID

  • Generate a personal API token: ClickUp Settings → Apps → API. Put it in .env:
    CLICKUP_BOT_API_TOKEN=<your-clickup-personal-token>
  • Create (or pick) a task in the list you'll map. The task ID is in the URL https://app.clickup.com/t/<taskId> (also shown as CU-<taskId>).

2. Map the list in config.json

Use the single-application shape (no platform field). The webhookId is any string you choose for local use — it just has to match what you pass to the target.

{
"projects": {
"demo": {
"clickup": {
"space": { "id": "90120056789" },
"lists": [{ "id": "901200100", "name": "Backlog", "webhookId": "wh-local" }]
},
"applications": {
"demo-app": {
"repo": "your-org/your-repo",
"baseBranch": "main",
"workflows": { "clickupTaskPromptPr": true },
"clickup": { "taskStatusTrigger": { "listId": "901200100" } }
}
}
}
}
}

3. Restart the server, then deliver the event

cd core && yarn dev
make call-clickup-task-status-updated \
task_id='<realTaskId>' \
webhook_id='wh-local' \
status='Alakai Ready' \
secret='<the secret stored under wh-local in CLICKUP_WEBHOOK_SECRETS>'

4. Verify

Server logs (in sequence):

Accepted ClickUp taskStatusUpdated webhook { taskId: '<realTaskId>', webhookId: 'wh-local', listId: '901200100', repo: 'your-org/your-repo' }
Created prompt PR for ClickUp task { prUrl: 'https://github.com/.../pull/...' }

GitHub — a PR titled docs(prompts): clickup-<realTaskId> appears, prompt file at prompts/docs-prompts__clickup-<realTaskId>.md.

ClickUp — a bot comment on the task with the PR URL (and Platform: <label> if routed by platform).

5. (Optional) Test platform routing on a shared list

To exercise FR-005/007/009, add a Platform dropdown custom field to the task in ClickUp, then read its field ID:

curl -s "https://api.clickup.com/api/v2/task/<realTaskId>?custom_fields=true" \
-H "Authorization: $CLICKUP_BOT_API_TOKEN" \
| jq '.custom_fields[] | select(.name=="Platform") | {id, options: .type_config.options}'

Then switch config.json to the shared-list shape and re-deliver the event:

{
"projects": {
"demo": {
"clickup": {
"space": { "id": "90120056789" },
"lists": [{
"id": "901200100",
"name": "Backlog",
"webhookId": "wh-local",
"platformField": { "id": "<platform-field-id>", "name": "Platform" },
"defaultApplication": "backend-app"
}]
},
"applications": {
"backend-app": {
"repo": "your-org/backend-repo", "baseBranch": "main",
"workflows": { "clickupTaskPromptPr": true },
"clickup": { "taskStatusTrigger": { "listId": "901200100", "platformFieldValue": "backend" } }
},
"ios-app": {
"repo": "your-org/ios-repo", "baseBranch": "main",
"workflows": { "clickupTaskPromptPr": true },
"clickup": { "taskStatusTrigger": { "listId": "901200100", "platformFieldValue": "ios" } }
}
}
}
}
}

Cases to check (restart the server after each config edit):

Task Platform valueExpected outcome
iosPR in your-org/ios-repo
backendPR in your-org/backend-repo
a value with no matching app (e.g. android)discarded, log platform_not_mapped
field empty, defaultApplication setPR in the default app (backend-app)
field empty, defaultApplication removeddiscarded, log platform_field_missing

Duplicate guard (Story 2): re-deliver the same task_id with Alakai Ready again — the branch docs-prompts/clickup-<taskId> already exists, so Alakai logs the collision and does not open a second PR.


Path C — Full E2E with real registration + status transition

Validates the registration paths (/init clickupListId=… and the CLI list_id), the Secrets Manager secret write, and a genuine status change in the ClickUp UI.

Before you start — set up config.json

Routing is driven by config, so the project, list, and application must exist before you register the webhook. The list id here must be the real ClickUp list ID you'll register and move tasks in. Keep REPO_WORKFLOW_CONFIG_SOURCE=file so the server reads this file.

{
"projects": {
"demo": {
"clickup": {
"space": { "id": "<your-space-id>" },
"lists": [
{ "id": "901200100", "name": "Backlog" }
]
},
"applications": {
"demo-app": {
"repo": "your-org/your-repo",
"baseBranch": "main",
"workflows": { "clickupTaskPromptPr": true },
"clickup": { "taskStatusTrigger": { "listId": "901200100" } }
}
}
}
}
}

Notes:

  • webhookId is intentionally not shown yet — it's filled in step 3 after registration (/init writes it automatically; with the CLI path you add it by hand).
  • For a shared list mapped to multiple repos, use the platform-routing shape from Path B step 5 instead (add platformField + defaultApplication on the list and platformFieldValue on each app).
  • clickupTaskPromptPr: true is required, or the event is discarded as repo_disabled.

1. Expose your local server

ngrok http 3000

Copy the https://<sub>.ngrok-free.app forwarding URL.

2a. Register via the CLI (simplest)

cd core
make register-clickup-webhook \
CLICKUP_BOT_API_TOKEN=<your-clickup-personal-token> \
CLICKUP_WORKSPACE_ID=3030784 \
ALAKAI_WEBHOOK_URL=https://<sub>.ngrok-free.app \
list_id=901200100

The response prints the webhook id and secret. Note both. Registration is idempotent — re-running with the same endpoint + list_id returns the existing webhook and creates no duplicate (FR-008).

2b. …or register via /init

If you're exercising the Slack path, run /init with the new argument:

/init project=demo repo=your-org/your-repo clickupListId=901200100

For /init to register, the local server needs CLICKUP_BOT_API_TOKEN, CLICKUP_WORKSPACE_ID, ALAKAI_WEBHOOK_URL, and (to persist the secret) AWS_SECRETS_MANAGER_SECRET_ID. The list (901200100) must already exist under the project's clickup.lists in config. The Slack reply shows a ClickUp: line — registered, already registered, or skipped/failed with a reason (FR-014). On success it writes webhookId onto the list entry (FR-013) and stores the HMAC secret in the CLICKUP_WEBHOOK_SECRETS map in Secrets Manager.

3. Make the signing key available to the running server

Put the returned secret where the handler will find it for that webhook_id:

# Per-webhook map (matches production)
CLICKUP_WEBHOOK_SECRETS={"<webhook-id>":"<webhook-secret>"}

Then record the webhookId on the list entry in config.json — this is the routing key the handler looks up:

"lists": [
{ "id": "901200100", "name": "Backlog", "webhookId": "<webhook-id>" }
]

CLI path (2a): make register-clickup-webhook only calls the ClickUp API — it does not touch config.json. You must add webhookId by hand as shown above. /init path (2b): the webhookId is written for you; you only need the signing key in .env.

Finally restart the server so it reloads the key and config.

4. Trigger from ClickUp

Move a task in that list to the Alakai Ready status. Within a few seconds you should get the prompt PR on GitHub and a bot comment on the task. Moving it to any other status does nothing.

5. Clean up

ngrok URLs die on restart and stale webhooks add noise:

cd core
make remove-clickup-webhook webhook_id='<webhook-id>'

Then remove the local signing key entries from .env.


Path D — Full E2E for direct implementation (Alakai stage = Implementation)

Validates the whole new path: a real status transition in ClickUp → core reads Alakai stage → enqueues an inline-prompt implementation task on SQS → the orchestrator launches the worker → the worker opens a real PR → the orchestrator posts the PR URL back on the ClickUp task. It also exercises the synchronous "started" comment and the refusal cases.

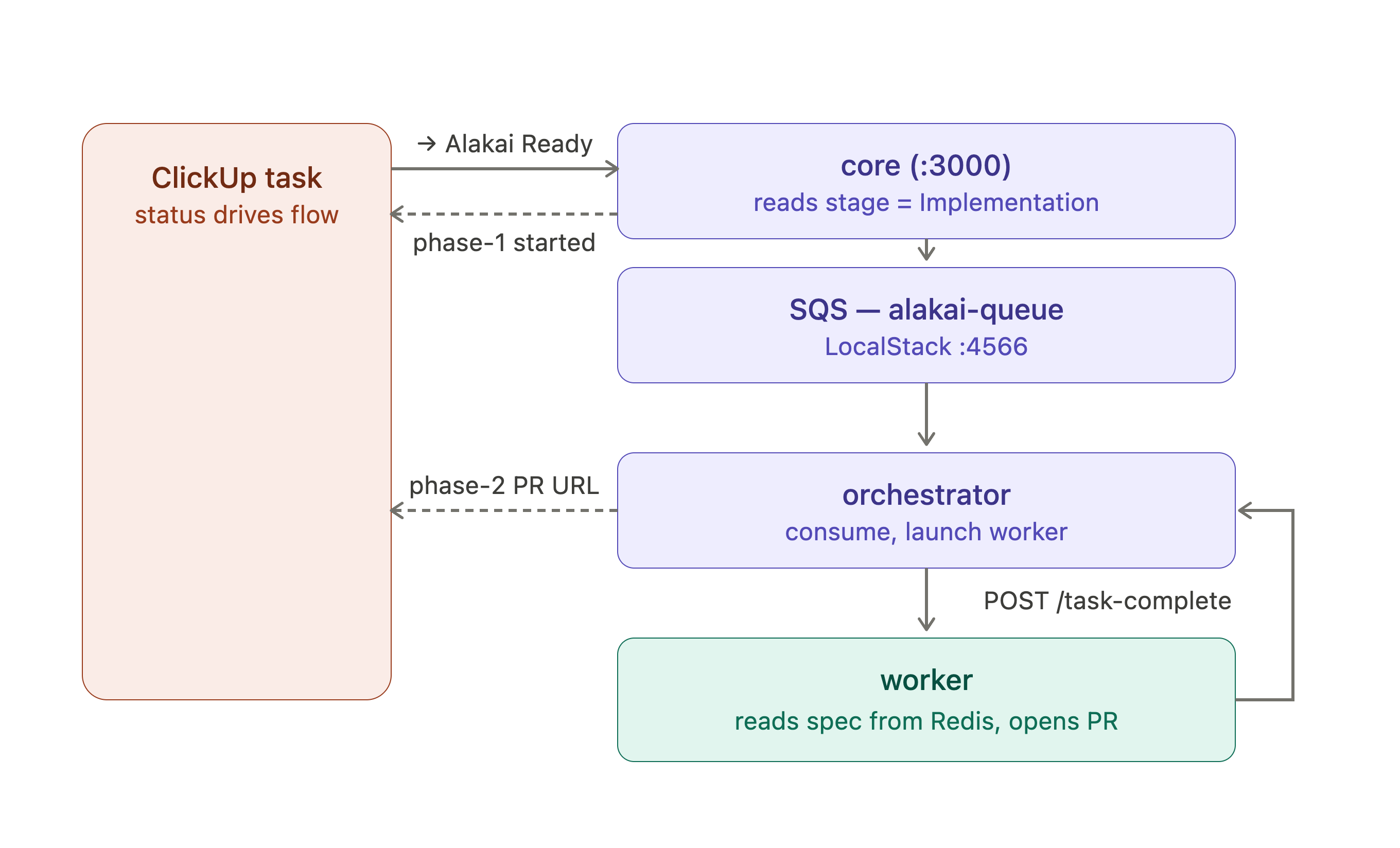

Topology — three processes + two async hops

ClickUp Alakai stage bypass flow

The ECS hop is the catch. With ENV=local the orchestrator skips ECS — instead of launching a container it stores the task in Redis and logs the taskId. So locally there is one manual bridge: copy that taskId into the worker and run it once (step 8). For a fully automatic run (no bridge, no ngrok), use the sandbox variant at the end of this path.

What goes in config.json

Identical to Path C — a project, a list with the registered webhookId, and one application with clickupTaskPromptPr: true. There is no config for Alakai stage — it is matched on the task by field name (case-insensitive), so nothing to wire here. clickupTaskPromptPr: true is still the umbrella gate that enables ClickUp automation for the app; the field value alone then selects direct implementation over prompt generation.

{
"projects": {
"demo": {
"clickup": {
"space": { "id": "<your-space-id>" },
"lists": [
{ "id": "901200100", "name": "Backlog", "webhookId": "<webhook-id-from-registration>" }
]
},
"applications": {
"demo-app": {
"repo": "your-org/your-repo",
"baseBranch": "main",
"workflows": { "clickupTaskPromptPr": true },
"clickup": { "taskStatusTrigger": { "listId": "901200100" } }
}
}
}
}
}

Prerequisites

  • LocalStack (SQS) and Redis running:
    cd .local-aws && make up && make infra # SQS queue alakai-queue @ :4566
    docker run -d -p 6379:6379 redis
  • ngrok to expose core: ngrok http 3000.
  • GitHub write access for the worker — GITHUB_APP_ID + GITHUB_APP_PRIVATE_KEY (recommended) or a GITHUB_TOKEN with push access to the target repo.
  • An implementation-agent keyCODEX_API_KEY (or OPENAI_API_KEY), or Cursor credentials.
  • CLICKUP_BOT_API_TOKEN in both core and the orchestrator — core posts the "started" comment, the orchestrator posts the PR-URL comment. They are separate processes with separate env.
  • Matching REDIS_KEY_PREFIX across orchestrator and worker, or run-once won't find the task.

Per-process environment

core/.env

REPO_WORKFLOW_CONFIG_SOURCE=file
IMPLEMENTATION_SQS_QUEUE_URL=http://localhost:4566/000000000000/alakai-queue
CLICKUP_BOT_API_TOKEN=<clickup-personal-token>
CLICKUP_WEBHOOK_SECRETS={"<webhook-id>":"<webhook-secret>"}
# plus GitHub access for base-branch resolution (App creds or GITHUB_TOKEN)

orchestrator/.env

ENV=local
SQS_QUEUE_URL=http://localhost:4566/000000000000/alakai-queue
REDIS_URL=redis://localhost:6379
REDIS_KEY_PREFIX=alakai-sandbox
PORT=8080 # the orchestrator binds this; its default is 3000 — which COLLIDES with core
ORCHESTRATOR_URL=http://localhost:8080 # must match PORT above (and the worker's ORCHESTRATOR_URL)
CLICKUP_BOT_API_TOKEN=<clickup-personal-token>

Port gotcha. Both core and the orchestrator default to PORT=3000. Setting only ORCHESTRATOR_URL does not change where the orchestrator listens — you must set PORT too. If the worker posts to :8080 but the orchestrator came up on :3000, you'll see the worker open the PR fine and then fail with Failed to post task completion after retries: fetch failed.

workers/implementation/.env

REDIS_URL=redis://localhost:6379
REDIS_KEY_PREFIX=alakai-sandbox # must equal the orchestrator's
ORCHESTRATOR_URL=http://localhost:8080 # the real orchestrator, so comment-back fires
TASK_ID= # filled in step 8 from the orchestrator log
IMPLEMENTATION_AGENT_PROVIDER=openai
CODEX_API_KEY=<key> # or OPENAI_API_KEY / Cursor
GITHUB_APP_ID=<id>
GITHUB_APP_PRIVATE_KEY=<pem>

Steps

1. Bring up infra + config

Start LocalStack + Redis (above) and write config.json (above) with REPO_WORKFLOW_CONFIG_SOURCE=file.

2. Start core and expose it

cd core && yarn dev # :3000
ngrok http 3000 # copy the https URL

3. Register the webhook

Use the CLI (idempotent) — same as Path C step 2a — pointing at the ngrok URL and your list_id:

cd core
make register-clickup-webhook \
CLICKUP_BOT_API_TOKEN=<token> \
CLICKUP_WORKSPACE_ID=<workspace-id> \
ALAKAI_WEBHOOK_URL=https://<sub>.ngrok-free.app \
list_id=901200100

Put the returned id/secret into config.json (webhookId) and core/.env (CLICKUP_WEBHOOK_SECRETS), then restart core. (Or use /init per Path C step 2b, which writes the webhookId for you.)

4. Create the Alakai stage field and a real task

In the ClickUp UI, on the list you registered:

  • Add a dropdown custom field named exactly Alakai stage with options Prompting and Implementation (create it once; it can live at the list or space level).
  • Create a task, write the actual spec in the description (this becomes the agent's prompt — title + description), and set Alakai stage = Implementation.

The field is resolved by name, so you don't need its field ID. If you want to confirm it's set, curl "https://api.clickup.com/api/v2/task/<id>?custom_fields=true" -H "Authorization: $CLICKUP_BOT_API_TOKEN" | jq '.custom_fields[] | select(.name=="Alakai stage")'.

5. Start the orchestrator

cd orchestrator && yarn dev # consumes the LocalStack queue, writes to Redis, serves /task-complete

6. Trigger from ClickUp

Move the task to the Alakai Ready status.

7. Watch core + the queue (first async hop)

  • core logs: Accepted ClickUp taskStatusUpdated webhookimplementation_enqueued (with repo, baseRef, promptBytes). Not pr_created.
  • ClickUp: the task gets the phase-1 comment — "Alakai started direct implementation…".
  • SQS (optional): before the orchestrator drains it, cd .local-aws && make read-sqs shows a message whose body has payload.prompt.type: "inline", payload.prompt.text = your spec, payload.source: "clickup_implement", and callbacks.clickup.taskId.

8. Bridge to the worker (local-only manual step)

The orchestrator consumes the message and logs Worker launched and message deleted { taskId: '<uuid>', taskArn: 'local:task:skipped-ecs' }. Copy that taskId:

cd workers/implementation
# set TASK_ID=<uuid-from-orchestrator-log> in .env (or inline), then:
make run-once

The worker reads the spec from Redis, runs the agent, opens the PR, and POSTs to /task-complete.

9. Verify the second hop + comment-back

  • GitHub: a real implementation PR is opened on your-org/your-repo.
  • worker logs: prompt resolved { promptSource: 'inline' }provider launch completedsuccess result posted to orchestrator.
  • orchestrator logs: Worker completed { status: 'success' }clickup.implementation.comment_posted.
  • ClickUp: the task gets the phase-2 comment — "Alakai finished direct implementation: PR: …".

10. Exercise the refusal cases (no enqueue, comment only)

SetupExpected
Alakai stage = Implementation, empty descriptioncore logs missing_description, posts a "description required" comment, no SQS message
Description larger than ~230 KBcore logs spec_too_large, posts a "spec too large" comment, no SQS message
Alakai stage = Prompting (or field unset)falls through to the prompt-PR flow → docs(prompts): PR (Path C behavior)

11. Clean up

cd core && make remove-clickup-webhook webhook_id='<webhook-id>'
cd ../.local-aws && make reset # purge the queue

Remove the local signing key + tokens from the .env files.

Fully-automatic variant (sandbox, real ECS — no bridge, no ngrok)

The manual step 8 exists only because ENV=local skips ECS. In sandbox/prod the orchestrator launches the worker as a Fargate task (injecting TASK_ID + REDIS_KEY_PREFIX), so the whole chain runs hands-off. To validate there:

  1. Deploy core + orchestrator to sandbox (so the webhook reaches a stable URL — ngrok not needed; register the webhook against the deployed core URL).
  2. Ensure CLICKUP_BOT_API_TOKEN is in both services' secrets (the orchestrator task definition now references it — see orchestrator/.aws/task_definition.json).
  3. Move a task with Alakai stage = Implementation to Alakai Ready. The PR and the PR-URL comment appear within a couple of minutes with no manual worker run.

Troubleshooting

SymptomCauseFix
/clickup/webhook returns 404No signing key set, so the route never mountedSet a non-empty CLICKUP_WEBHOOK_SECRETS map and restart
401 invalid_signatureSigning key mismatchEnsure the key used to sign matches CLICKUP_WEBHOOK_SECRETS[webhook_id]
401 webhook_secret_missingwebhook_id not in the mapAdd the secret under that webhook_id in CLICKUP_WEBHOOK_SECRETS
status_not_triggerStatus wasn't Alakai Ready (case-insensitive)Send status='Alakai Ready' / move the task to that status
webhook_not_mappedNo clickup.lists[].webhookId equals the payload webhook_idAdd/align the webhookId on the list entry
task_fetch_failedMissing/invalid CLICKUP_BOT_API_TOKEN, or task not readableSet a valid bot token; confirm the task ID exists
ambiguous_applicationShared list, no platformField, multiple apps point at itAdd a platformField or reduce to one app for the list
platform_not_mapped / platform_field_missingNo app matches the label / no value and no defaultAdd a matching platformFieldValue, or set defaultApplication
repo_disabledclickupTaskPromptPr not trueSet "clickupTaskPromptPr": true on the application
Config edits ignoredStill reading S3REPO_WORKFLOW_CONFIG_SOURCE=file and restart
No second PR on re-triggerExpected — duplicate-branch guardThis is correct behavior, not a bug
(Path D) Prompt-PR opened instead of direct implementationAlakai stage not set to Implementation, or field name doesn't matchConfirm the dropdown is named exactly Alakai stage and the selected option is Implementation
(Path D) missing_description / spec_too_largeDirect path refused: empty description, or spec > ~230 KBAdd a description / trim it, then move the task back to Alakai Ready
(Path D) No SQS message after Alakai ReadyIMPLEMENTATION_SQS_QUEUE_URL not pointed at LocalStack, or LocalStack downSet it to the alakai-queue URL; cd .local-aws && make up && make infra
(Path D) make run-onceNo payload found in RedisTASK_ID / REDIS_KEY_PREFIX mismatch with the orchestratorCopy taskId from the orchestrator log; match REDIS_KEY_PREFIX in both
(Path D) PR opens, then worker errors Failed to post task completion after retries: fetch failedWorker ORCHESTRATOR_URL points where nothing is listening — usually the port collision: orchestrator came up on its default :3000 (clashing with core) while the worker posts to :8080, or .env.sample's http://orchestrator:3000 hostname doesn't resolve locallySet the orchestrator's PORT (not just ORCHESTRATOR_URL) to a free port like 8080 and match the worker's ORCHESTRATOR_URL to it
(Path D) PR opens but no phase-2 ClickUp commentCLICKUP_BOT_API_TOKEN missing on the orchestrator, or worker ORCHESTRATOR_URL points at the mockSet the token on the orchestrator; point the worker at the real orchestrator
(Path D) notify: "No notification handler for task type"Worker sent a callback without top-level taskType (pre-fix worker)Ensure the implementation worker sends the canonical { taskId, taskType, status, result } shape

Key naming conventions

Prompting path (Paths A–C):

ArtifactPattern
PR titledocs(prompts): clickup-<taskId>
Branchdocs-prompts/clickup-<taskId>
Prompt fileprompts/docs-prompts__clickup-<taskId>.md

Direct-implementation path (Path D): there is no docs(prompts): PR or prompt file — the worker opens the implementation PR directly, and its branch/PR name come from the worker's implementation branch-naming (derived from the task), not the docs-prompts/ pattern above.
